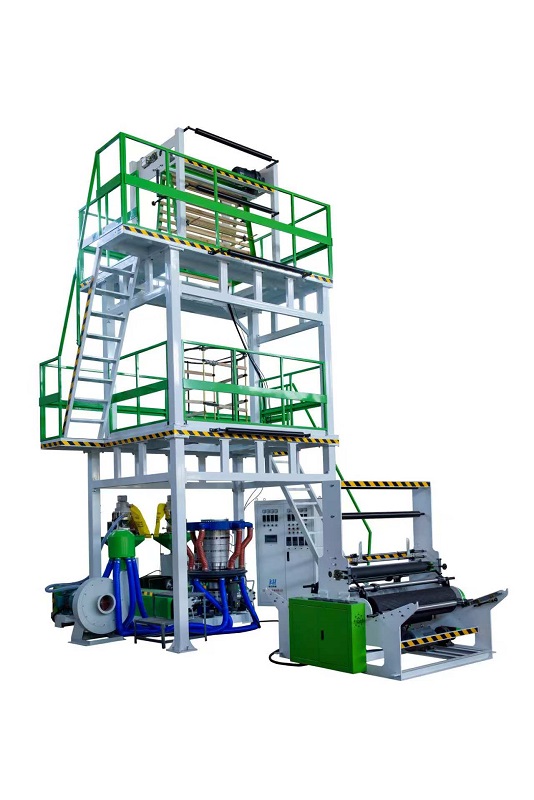

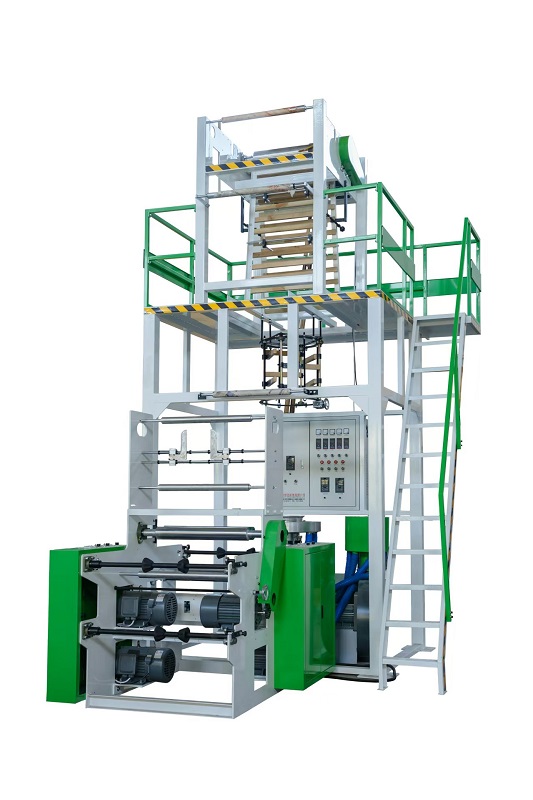

Film blowing machine (Single layer / ABA)
Film blowing machine
Brief introduction
High speed film blowing machine is specially used for blowing HDPE film, LDPE film, LLDPE film. Widely used in food storage, industry & electronic filed packaing film production.
The options of this equipment
Auto loader
Rotary mould
Automatic rewind
Automatic air feeding system
Back to back rewind
Technical Parameter
Mono layer film blowing machine
Main feature
Model | KH-50-800 | KH-65-1000 | KH-80-1500 |
Screw diameter | 50mm | 65mm | 80mm |
Extruder motor | 15KW | 32KW | 45/55KW |
Film width | 300-750mm | 600-1000mm | 1000-1500mm |
Output | 10-50kg/h | 30-75kg/h | 30-90kg/h |
Total Power | 35Kw | 50Kw | 76Kw |
Weight | 3000kg | 5500kg | 8600kg |
Dimension (L×W×H)mm | 6800×2100×4500 | 6800×2800×5600 | 7100×3200×7200 |
ABA/AB FILM BLOWING MACHINE
Model | KH-50x2-800 | KH-55*2-1200 | KH-65x2-1400 |
Screw diameter | 50mm | 55mm | 65mm |
Extruder motor | 15KW*2set | 22KW*2set | 32KW*2set |
Film width | 300-750mm | 400-850mm | 600-1000mm |
Output | 100kg/h | 130kg/h | 180kg/h |
Total Power | 55Kw | 70Kw | 90Kw |
Weight | 4500kg | 6500kg | 8500kg |
Dimension (L×W×H)mm | 5800×2000×4800 | 6000×2500×6000 | 6800×2800×5600 |
